Description

Dimensions

1100 × 1100 × 150 mm (ISO Standard Container Footprint)

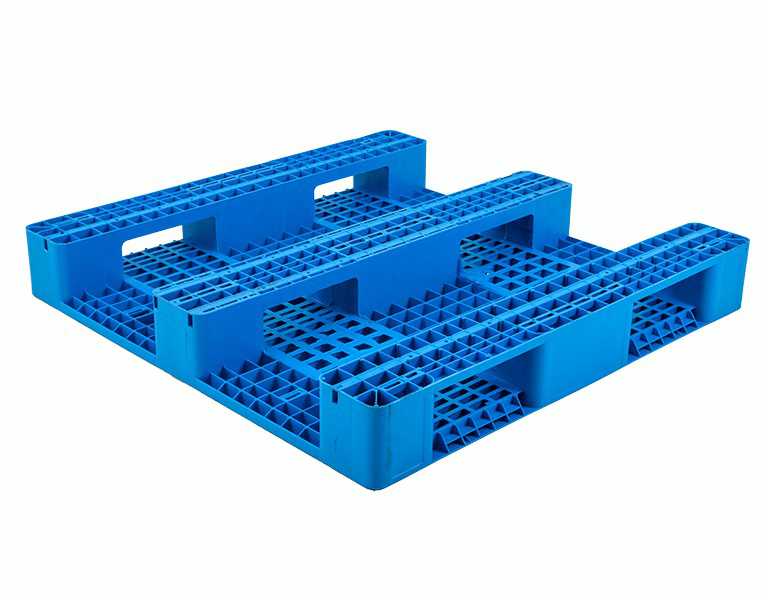

Structure Type

Vented Open Grid Deck, 3-Runner Base (3 Bottom Skids)

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

4000KG

Dynamic Load Capacity

1000KG

Racking Load Capacity

800KG

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

12KG

Single-Piece High-Pressure Injection Molding:

Molded in a single shot using virgin or high-grade HDPE. Eliminates structural welds, joints, and fasteners, delivering maximum torsional stiffness, impact resistance, and long-term service life.

ISO Container Footprint Optimization (1100x1100 mm):

Specifically dimensioned to maximize floor space utilization inside standard 20ft and 40ft ocean shipping containers, eliminating void space and preventing cargo shifting during maritime transit.

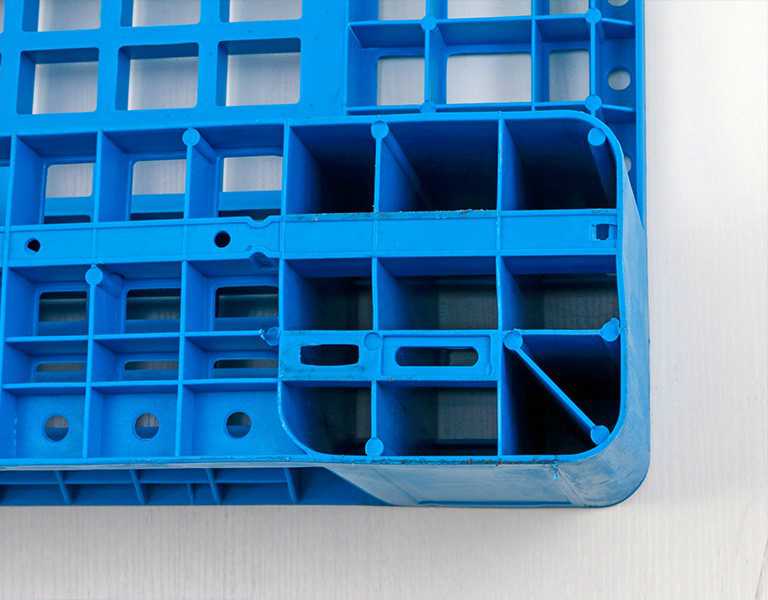

3-Runner Load Distribution Base:

Features three longitudinal bottom runners that allow smooth movement across beam racking systems, roller conveyors, and automated handling lines while providing high floor stability.

Vented Open Deck Design:

The grid top pattern promotes continuous air ventilation, prevents moisture accumulation, and simplifies washdown sanitization while keeping pallet weight optimized at 12.0 kg.

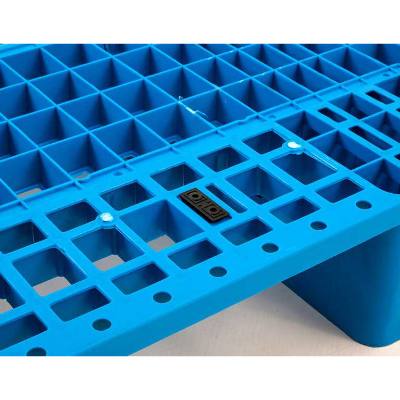

Integrated Anti-Slip Control:

Equipped with high-friction rubber pads inserted directly into the top deck surface to lock cargo, drums, and corrugated boxes in place during rapid movement.

Hygienic & ISPM-15 Exempt:

100% impervious to water, weak acids, solvents, and bacteria growth. Completely exempt from ISPM-15 heat treatment and fumigation regulations for hassle-free export clearance.
