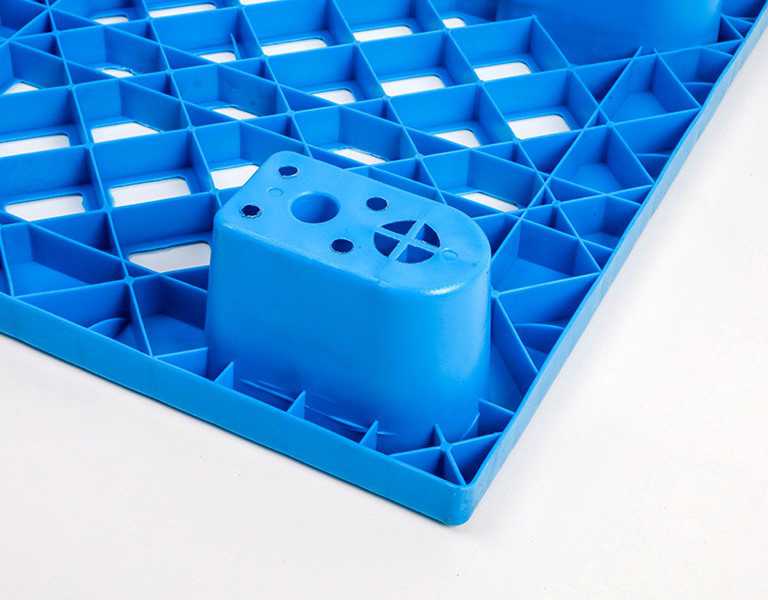

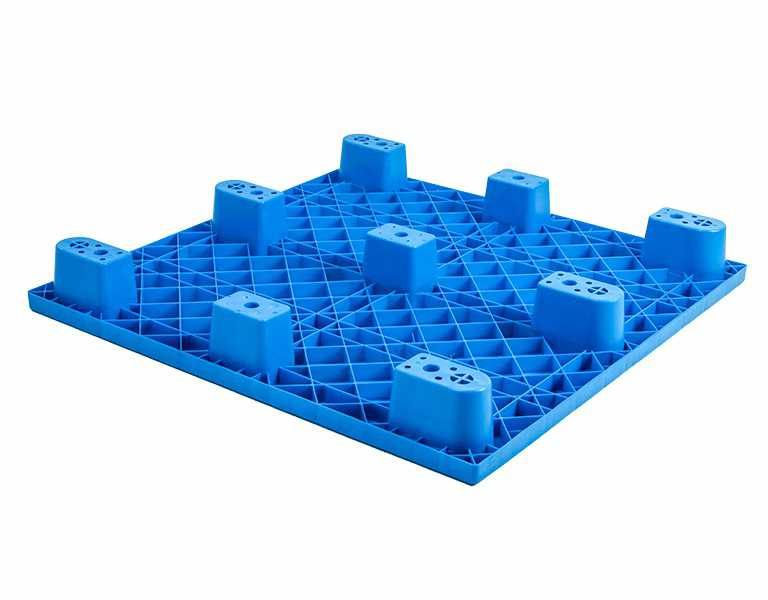

1111 Vented Deck 9-Leg Nestable Plastic Pallet

1111 Vented Deck 9-Leg Nestable Plastic Pallet

Deployment & Environmental Compatibility:

One-way export freight shipping, air cargo consolidation, high-density empty stack storage, light-duty warehouse distribution, and inter-plant material transfers.

Compatible Handling & Lifting Equipment:

Manual hydraulic hand jacks, four-wheel electric forklifts, motorized stackers, and automated conveyor lines.

Primary Industrial Sectors:

Air freight forwarding, e-commerce logistics, light industrial manufacturing, textile distribution, commercial packaging, and agricultural exports.

+86 190 5055 5059

Description

Dimensions

1100 × 1100 × 145 mm

Structure Type

Vented Open Grid Deck, 9-Leg Nestable Block Base

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

1000KG

Dynamic Load Capacity

500KG

Racking Load Capacity

Floor Stacking, One-Way Export & Nestable Storage Only

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

6.8KG

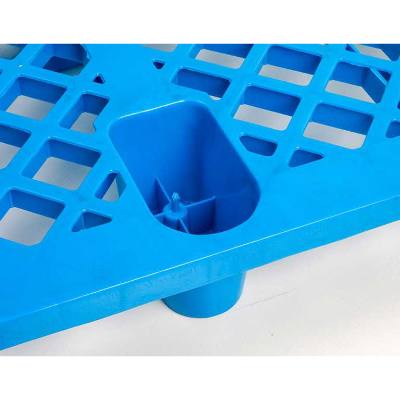

Nestable Space-Saving Architecture:

The 9-leg block structure allows empty pallets to nest neatly inside one another. This drastically reduces empty storage footprints in warehouses and cuts return-freight transport volume by up to 60%.

Ultra-Lightweight Single-Piece Injection Molding:

Precision-molded in a single shot using HDPE to create a unitized, joint-free frame. At just 6.8 kg, it significantly reduces tare weight for air freight, express shipping, and manual handling safety.

True 4-Way Universal Fork & Jack Entry:

With no bottom runners connecting the legs, the open structure provides total 4-way access for both motorized forklifts and standard manual hand pallet jacks from any direction.

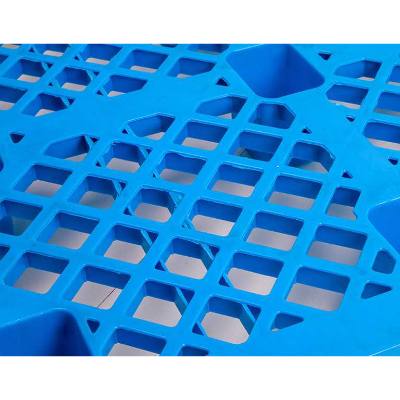

Vented Diamond-Grid Deck:

The open lattice deck pattern maintains structural integrity while minimizing overall material mass. It promotes airflow, allows quick liquid drainage, and prevents dirt or moisture accumulation.

Hygienic & ISPM-15 Exempt Export Standard:

100% waterproof, chemical-resistant, and impervious to pests and mold. Completely exempt from ISPM-15 heat treatment and fumigation regulations, enabling fast and hassle-free international customs clearance.
