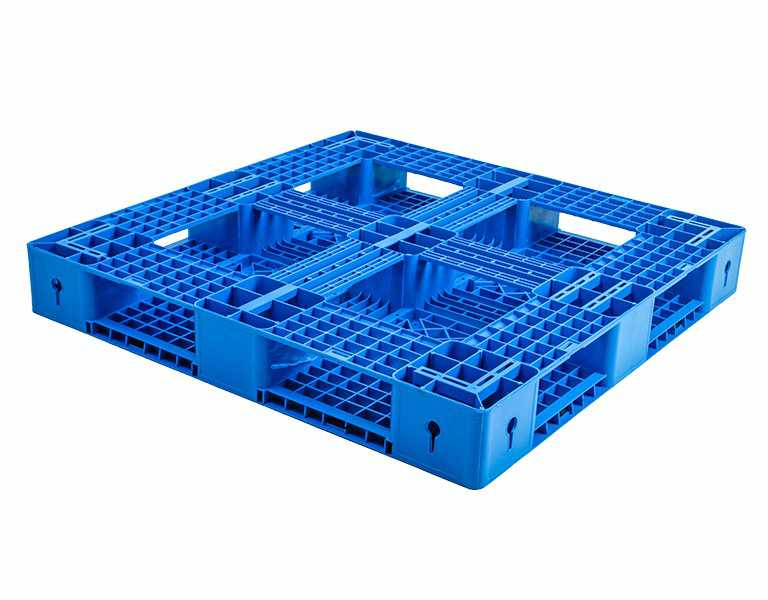

1111 Vented Deck Full Perimeter Heavy-Duty Plastic Pallet

1111 Vented Deck Full Perimeter Heavy-Duty Plastic Pallet

Deployment & Environmental Compatibility:High-density floor block stacking, intermodal freight container distribution, intensive high-bay racking systems, automated drive-in storage racks, and internal industrial supply chain loops.

Compatible Handling & Lifting Equipment:Four-wheel electric forklifts, high-lift reach trucks, motorized heavy-duty palleteer stackers, and automated guided vehicles (AGVs) configured for 4-way entry.

Primary Industrial Sectors:Bulk chemical processing, polymer resin distribution, agricultural commodity exporting, food processing & packaging facilities, commercial 3PL warehousing, and heavy machinery manufacturing.

+86 190 5055 5059

Description

Dimensions

1100 × 1100 × 150 mm (ISO Standard Container Footprint)

Structure Type

Vented Open Grid Deck, Full Perimeter Base (6-Runner / Picture-Frame)

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

4000KG

Dynamic Load Capacity

1000KG

Racking Load Capacity

800KG

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

11.5KG

Single-Piece High-Pressure Injection Molding:

Molded in a single shot from 100% HDPE, creating a seamless, unitized structure with zero welds or mechanical fasteners. This ensures maximum torsional rigidity and long-term durability against forklift impacts.

Full Perimeter (6-Runner / Picture-Frame) Base:

Features a cross-shaped bottom skid arrangement that distributes weight evenly across lower surfaces. This configuration allows secure multi-tier double-stacking of loaded pallets without crushing or damaging bottom-layer cargo.

Optimized ISO Container Dimensions (1100x1100 mm):

Specifically dimensioned to maximize floor space utilization inside standard 20ft and 40ft sea shipping containers, eliminating void space and preventing freight shifting during ocean transit.

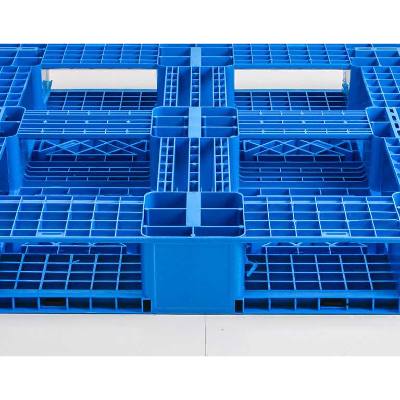

Vented Open Grid Deck Architecture:

The honeycombed grid design minimizes tare weight to just 11.5 kg while providing structural stiffness, continuous airflow, fast liquid drainage, and easy spray sanitization.

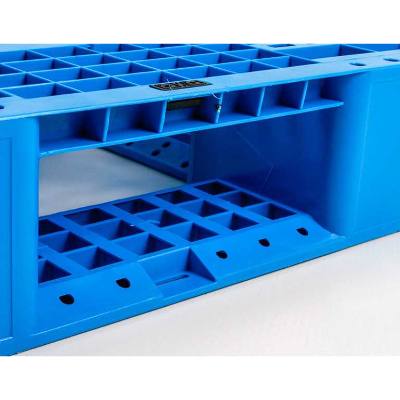

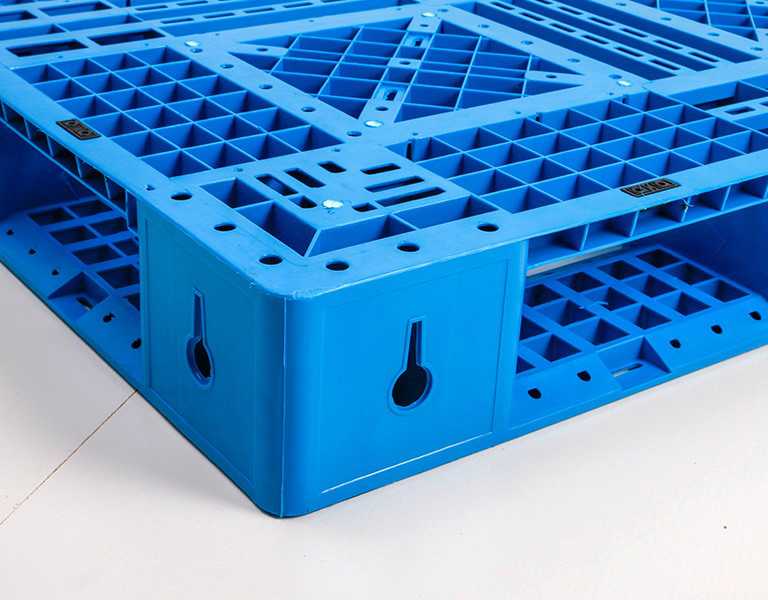

4-Way Beveled Fork Entry Portals:

Engineered with chamfered ramps on all four entry sides and reinforced corner pillars to guide forklift tines smoothly into the pallet, significantly reducing lead-edge wear and frame shock.

Hygienic & Export Compliant:

Fully impervious to water, weak acids, solvents, and biological growth. Completely exempt from ISPM-15 heat treatment and fumigation regulations, facilitating fast customs clearance for global shipments.
