Description

Dimensions

1200 × 800 × 150 mm (Standard Euro Footprint)

Structure Type

Vented Open Grid Deck, Large 9-Leg Nestable Block Base

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

4,000 kg (4 Metric Tons, Uniformly Distributed Load)

Dynamic Load Capacity

1,000 kg (1 Metric Ton, Uniformly Distributed Load)

Racking Load Capacity

Floor Staging, Moisture-Proof Ground Lining & Nestable Storage

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

8.4 kg

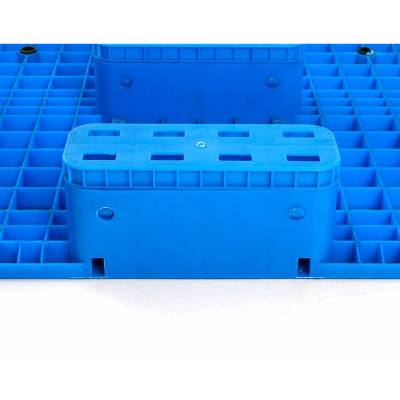

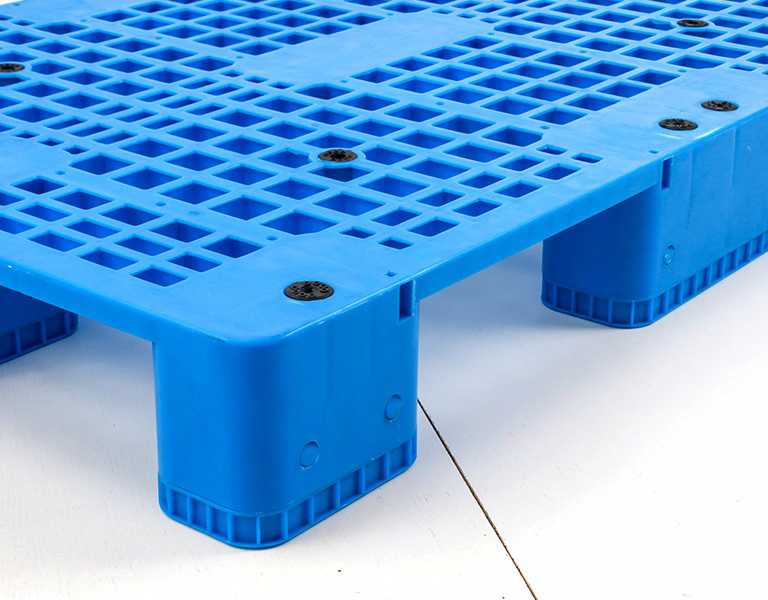

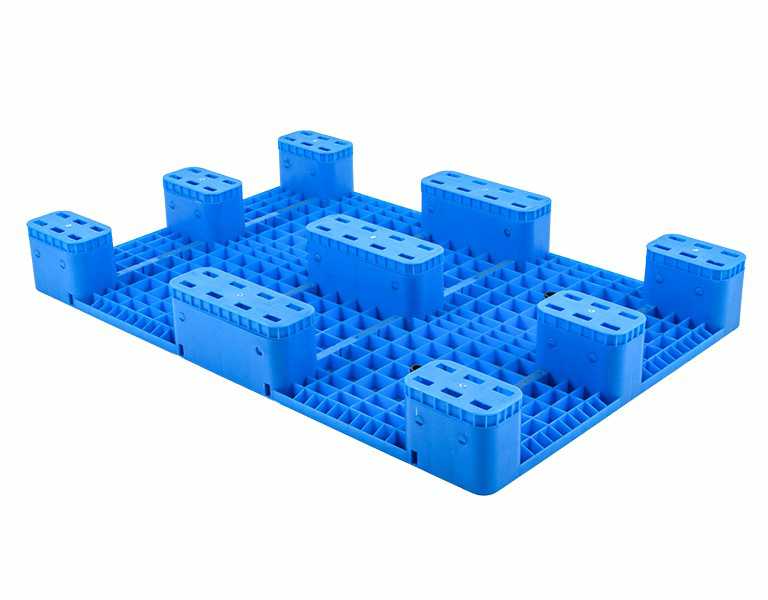

Enlarged 9-Leg Block Base Design:

Engineered with wide-footprint support columns to deliver enhanced surface contact and load stability on warehouse floors. Serves as a heavy-duty moisture barrier while retaining compact nesting capability.

Single-Piece High-Pressure Injection Molding:

Molded in a single shot using high-density polyethylene (HDPE). The seamless, unitized structure contains no weak welds or mechanical fasteners, ensuring high impact resistance and long-term service life.

Nestable Space-Saving Storage:

The open 9-leg block layout allows empty pallets to nest inside one another when stacked. This maximizes warehouse storage space and significantly reduces return-freight transport volume during empty backhaul transit.

True 4-Way Universal Fork & Jack Access:

Designed without bottom connecting runners, providing completely unobstructed 4-way entry for motorized forklifts, electric stackers, and standard manual hydraulic hand jacks from any direction.

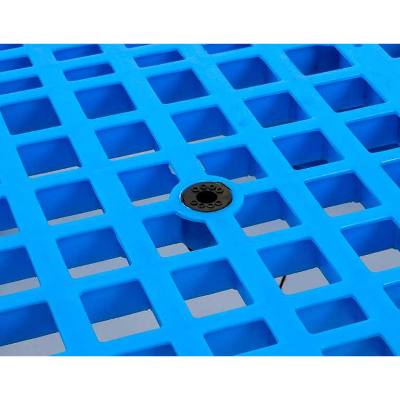

Vented Open Grid Deck Architecture:

The lattice grid design minimizes tare weight at 8.4 kg while maintaining a high 4,000 kg static capacity. It promotes active airflow, prevents moisture buildup under stored goods, and facilitates easy spray cleaning.

Hygienic & ISPM-15 Exempt Export Standard:

100% waterproof, chemical-resistant, and impervious to rot, pests, and biological growth. Fully exempt from ISPM-15 heat treatment and fumigation mandates for fast international customs clearance.
