Description

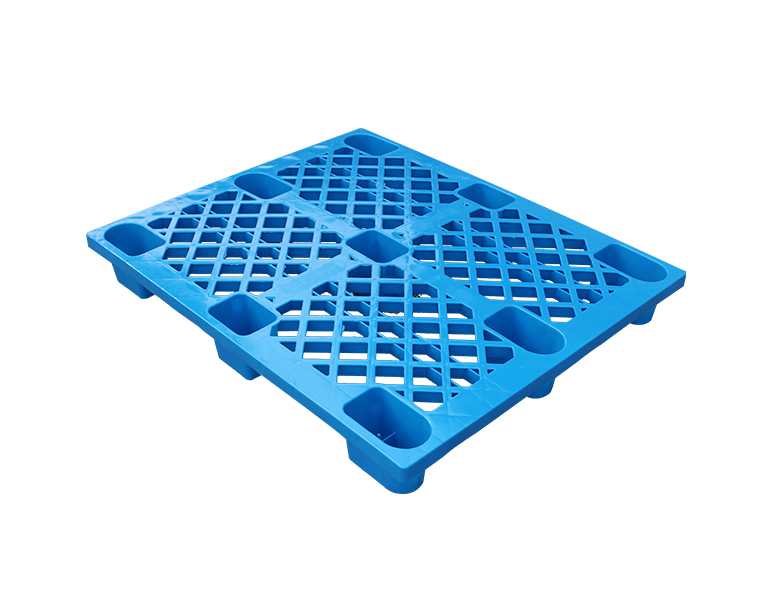

Dimensions

1200 × 1000 × 150 mm (Standard Industrial Footprint)

Structure Type

Vented Open Grid Deck, 3-Runner Base (3 Bottom Skids)

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

4,000 kg (4 Metric Tons, Uniformly Distributed Load)

Dynamic Load Capacity

1,000 kg (1 Metric Ton, Uniformly Distributed Load)

Racking Load Capacity

Floor Storage, Selective Racking & Roller Conveyor Compatible

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

11.8 kg

Single-Piece High-Pressure Injection Molding:

Molded in a single shot using high-density polyethylene (HDPE). The seamless, unitized structure eliminates weak weld seams and mechanical fasteners, delivering high impact resistance and long-term structural integrity.

Standard Industrial Footprint (1200x1000 mm):

Conforms to standard international industrial dimensions, maximizing vertical loading efficiency and floor space utilization inside warehouse storage bays and freight transport vehicles.

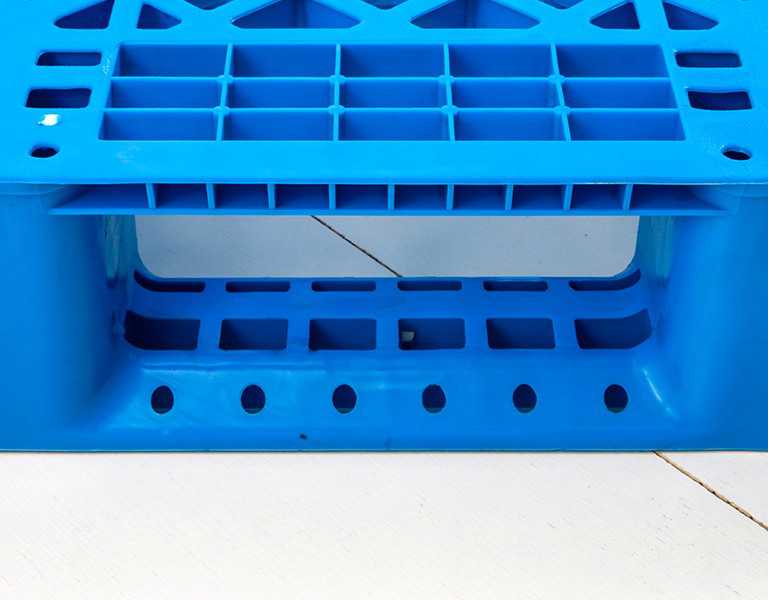

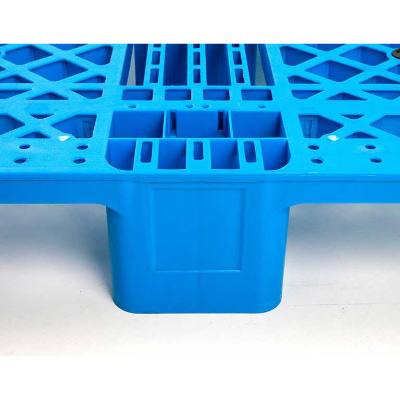

3-Runner Load Distribution Base:

Features three sturdy bottom skids that run longitudinally. This configuration provides solid stability across warehouse floors, smooth travel across roller conveyor networks, and safe load distribution during racking storage.

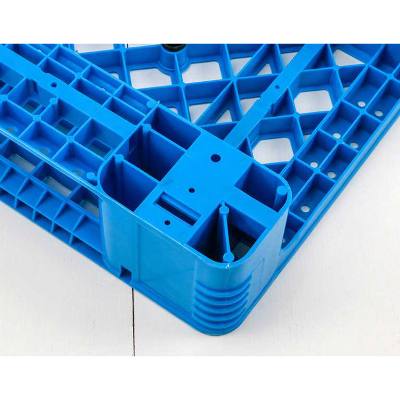

Vented Open Grid Deck Architecture:

The lattice grid design optimizes structural strength while maintaining an efficient 11.8 kg deadweight. It facilitates continuous air circulation, prevents moisture retention under cargo, and enables fast spray cleaning.

Universal Handling Accessibility:

Provides smooth 4-way access for motorized forklifts and 2-way entry along the runner ends for standard manual hydraulic hand jacks, ensuring versatile operational handling.

Hygienic & ISPM-15 Exempt Export Standard:

100% waterproof, chemical-resistant, and completely impervious to rot, pests, and bacterial contamination. Fully exempt from ISPM-15 heat treatment and fumigation mandates for international shipping.
