Description

Dimensions

1200 × 1000 × 140 mm (Standard Industrial Footprint, Low Profile)

Structure Type

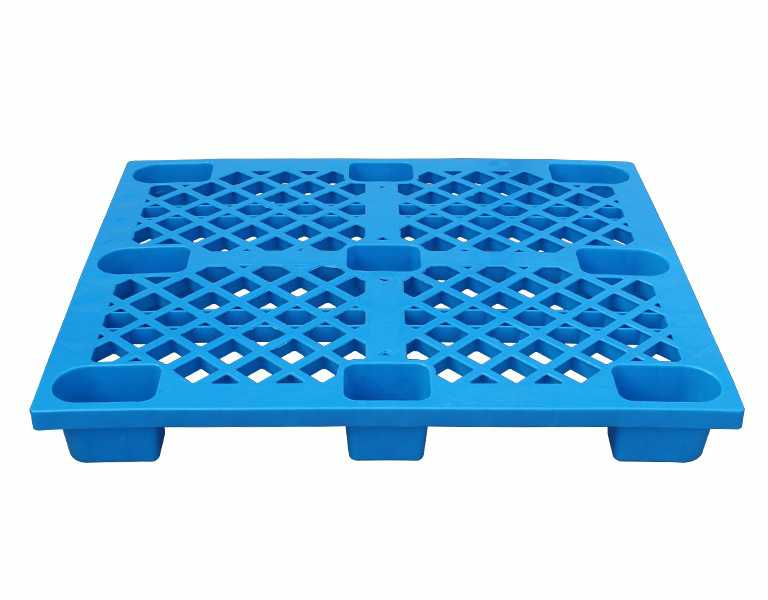

Vented Open Grid Deck, Large 9-Leg Nestable Block Base

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

4,000 kg (4 Metric Tons, Uniformly Distributed Load)

Dynamic Load Capacity

1,000 kg (1 Metric Ton, Uniformly Distributed Load)

Racking Load Capacity

Floor Staging, Moisture-Proof Ground Lining & Nestable Storage

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

10.3 kg

Ultra-Lightweight Single-Piece Injection Molding:

Molded in a single shot using high-density polyethylene (HDPE) to form a seamless, unitized frame with zero welds or mechanical fasteners. Available in 6.3 kg and 6.7 kg tare weight options to minimize tare mass in air freight and express export logistics.

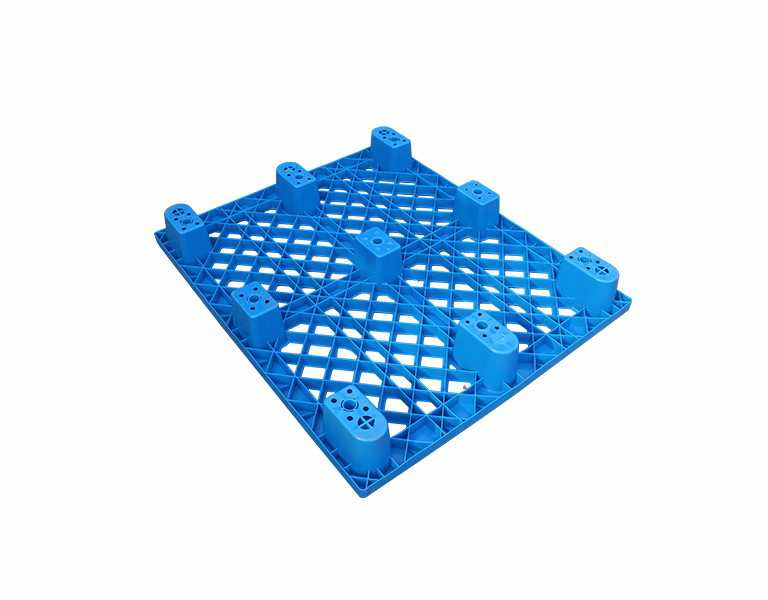

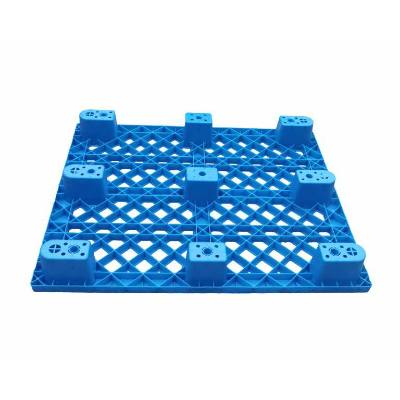

Nestable 9-Leg Space Savings:

The open 9-leg block layout allows empty pallets to nest inside one another when stacked, drastically reducing warehouse storage footprint and empty return shipping volume during backhaul transit.

True 4-Way Universal Access:

Free from bottom connecting runners, allowing completely unobstructed 4-way entry for motorized forklifts, electric stackers, and standard manual hydraulic hand jacks from any direction.

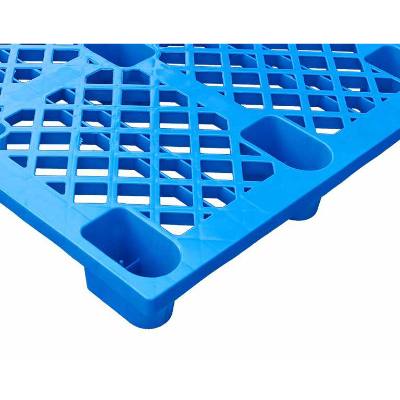

Vented Open Grid Deck (145mm Profile):

The open lattice grid design promotes continuous airflow, prevents moisture buildup under stored goods, and allows fast water drainage while maintaining structural stiffness.

Hygienic & ISPM-15 Exempt Export Standard:

100% waterproof, chemical-resistant, and impervious to rot, pests, and biological contamination. Fully exempt from ISPM-15 heat treatment and fumigation mandates for fast, hassle-free international customs clearance.
