Description

Dimensions

1200 × 1000 × 150 mm (Standard Industrial Footprint)

Structure Type

Vented Open Grid Deck, Full Perimeter Base (6-Runner / Picture-Frame)

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

4,000 kg (4 Metric Tons, Uniformly Distributed Load)

Dynamic Load Capacity

1,000 kg (1 Metric Ton, Uniformly Distributed Load)

Racking Load Capacity

Multi-Tier Floor Stacking & Heavy-Duty Storage

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

11.3 kg (Reinforced Wall Profile)

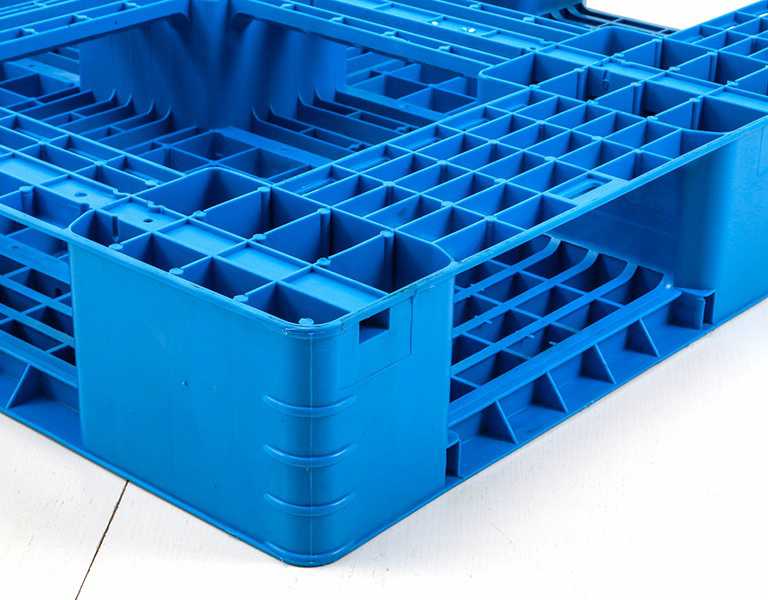

Reinforced Single-Piece Injection Molding:

Molded in a single shot using high-density polyethylene (HDPE). Features reinforced ribbing and thickened outer frame walls for enhanced torsional rigidity, structural integrity, and resistance to heavy fork tine impacts.

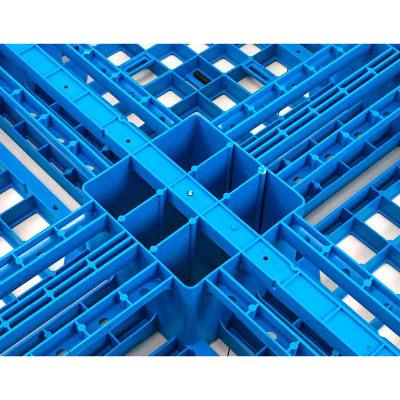

Full Perimeter (6-Runner / Picture-Frame) Base:

The cross-shaped 6-runner bottom configuration evenly distributes load weight across underlying packaging layers. This enables safe, stable multi-tier double-stacking of cartons, drums, and bagged goods without crushing lower levels.

Vented Open Grid Deck Architecture:

The honeycombed grid deck maintains superior strength-to-weight efficiency at 11.3 kg while facilitating active airflow, preventing moisture accumulation, and ensuring fast water runoff during hygiene washdowns.

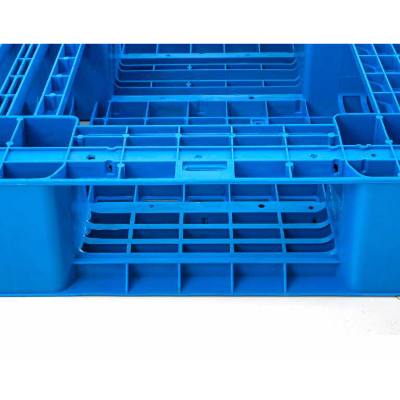

4-Way Forklift Entry with Beveled Guides:

Designed with chamfered runner entry edges to guide forklift tines smoothly into entry channels, reducing physical wear and extending service life during high-volume material handling operations.

Hygienic & ISPM-15 Exempt Export Standard:

Impervious to water, acids, alkalis, and biological contamination. Fully exempt from ISPM-15 heat treatment and fumigation mandates for smooth international customs clearance.
