Description

Dimensions

1200 × 1000 × 140 mm (Standard Industrial Footprint, Low Profile)

Structure Type

Vented Open Grid Deck, Large 9-Leg Nestable Block Base

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

4,000 kg (4 Metric Tons, Uniformly Distributed Load)

Dynamic Load Capacity

1,000 kg (1 Metric Ton, Uniformly Distributed Load)

Racking Load Capacity

Floor Staging, Moisture-Proof Ground Lining & Nestable Storage

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

10.3 kg

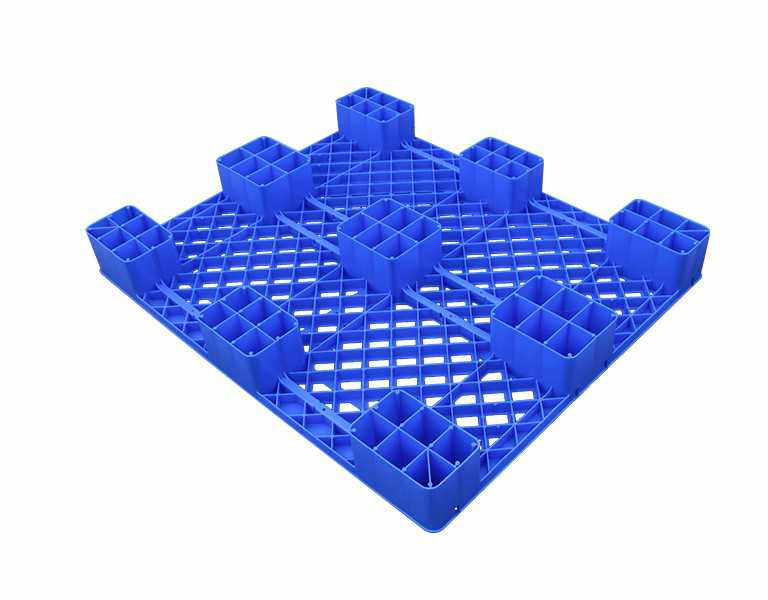

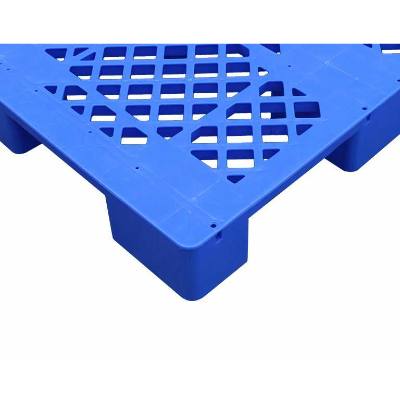

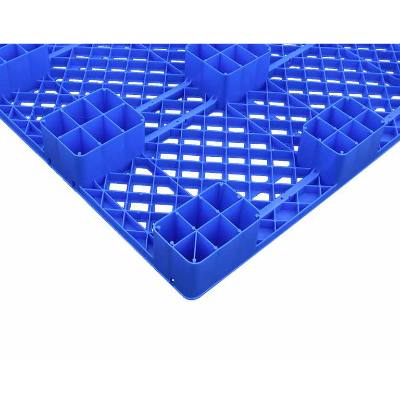

Enlarged 9-Leg Block Base Architecture:

Engineered with wide-footprint support blocks to deliver enhanced surface contact, stability, and weight distribution across warehouse floors while acting as an effective moisture-proof barrier.

Single-Piece High-Pressure Injection Molding:

Molded in a single shot using high-density polyethylene (HDPE). The unitized, joint-free frame eliminates weak points and mechanical fasteners, ensuring high impact resistance and long-term durability.

Nestable Space-Saving Layout:

The open 9-leg block design allows empty pallets to nest inside one another when stacked. This maximizes empty storage density in warehouses and significantly reduces return-freight transport volume during empty backhaul transit.

True 4-Way Universal Fork & Jack Access:

Designed without bottom connecting runners, providing completely unobstructed 4-way entry for motorized forklifts, electric stackers, and standard manual hydraulic hand jacks from any direction.

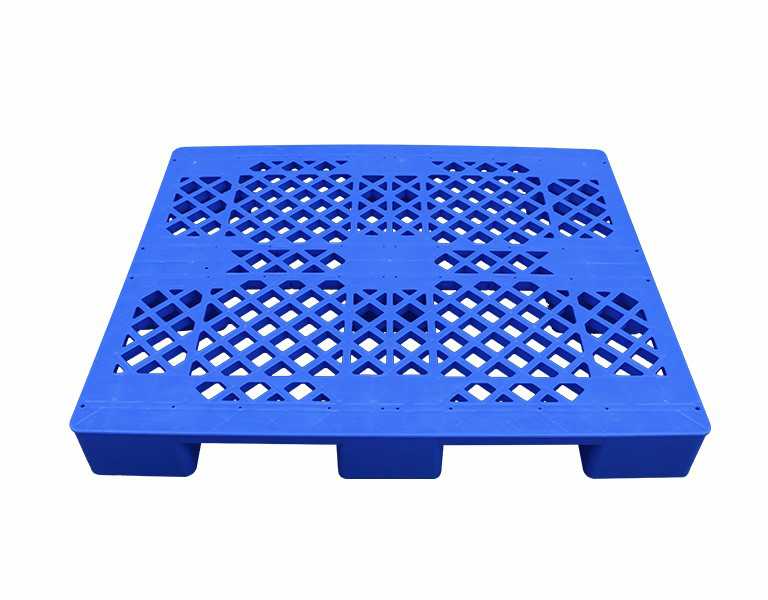

Vented Open Grid Deck (140mm Height Profile):

The lattice grid deck design maintains strong weight-to-load efficiency at 10.3 kg. It promotes active airflow, prevents moisture accumulation under stored goods, and facilitates easy spray cleaning.

Hygienic & ISPM-15 Exempt Export Standard:

100% waterproof, chemical-resistant, and impervious to rot, pests, and biological growth. Fully exempt from ISPM-15 heat treatment and fumigation mandates for fast, hassle-free international customs clearance.
