Description

Dimensions

1200 × 1000 × 150 mm (Standard Industrial Footprint)

Structure Type

Vented Open Grid Deck, Transverse 3-Runner Base (Reverse 3-Skid Layout)

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

4,000 kg (4 Metric Tons, Uniformly Distributed Load)

Dynamic Load Capacity

1,000 kg (1 Metric Ton, Uniformly Distributed Load)

Racking Load Capacity

Floor Storage, Selective Racking & Roller Conveyor Compatible

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

13.0 kg

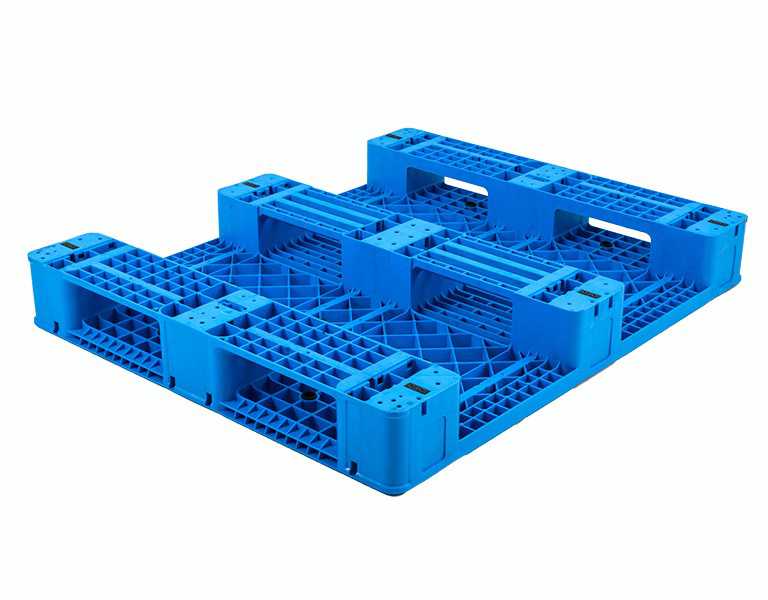

Transverse 3-Runner (Reverse Skid) Architecture:

Engineered with three bottom runners oriented transversely across the short axis (1000mm direction). This reverse skid configuration offers specialized directional support, optimized balance, and seamless movement for specific conveyor systems, racking layouts, and automated equipment.

Single-Piece High-Pressure Injection Molding:

Molded in a single shot using high-density polyethylene (HDPE). The unitized, joint-free frame eliminates weak mechanical fasteners and welds, ensuring superior impact resistance and long-term durability.

Standard Industrial Footprint (1200x1000 mm):

Conforms to international industrial logistics specifications, maximizing packing efficiency inside ocean shipping containers, dry vans, and warehouse rack bays.

Vented Open Grid Deck Design:

The lattice grid structure provides high torsional stiffness while maintaining an efficient 13.0 kg deadweight. It promotes active airflow, prevents condensation buildup under cargo, and simplifies washdown procedures.

Universal Handling Accessibility:

Provides 4-way access for motorized forklifts and reach trucks, alongside 2-way entry through the transverse runner openings for standard manual hydraulic hand jacks.

Hygienic & ISPM-15 Exempt Export Standard:

100% moisture-proof, chemical-resistant, and impervious to pests, biological rot, and bacteria. Fully exempt from ISPM-15 heat treatment and fumigation mandates for seamless international trade.
