Description

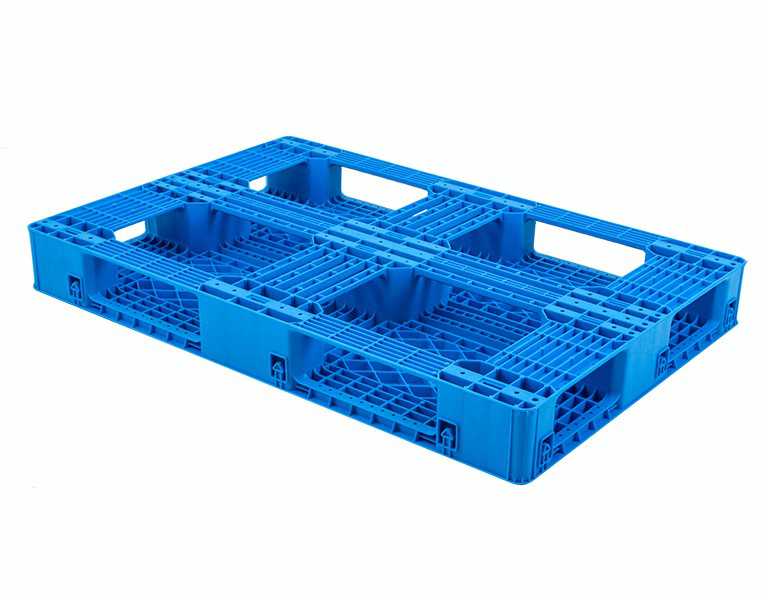

Dimensions

1200 × 800 × 135 mm (EU Euro Standard Footprint, Low Profile)

Structure Type

Vented Open Grid Deck, Full Perimeter Base (6-Runner / Picture-Frame)

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

4000KG

Dynamic Load Capacity

1000KG

Racking Load Capacity

Multi-Tier Floor Stacking & Selective Racking Compatible

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

10 kg

Thermal-Stabilized Material Formulation:

Engineered with heat-resistant additives blended into high-density polyethylene (HDPE). Maintains structural rigidity, impact strength, and dimensional tolerances during high-temperature washdowns, steam sanitization, and hot-fill production environments.

Euro Standard Low-Profile Dimensions (1200x800x135 mm):

Conforms precisely to European Euro-pallet standards, with a low profile height of 135 mm to maximize vertical cube utilization inside trucks, shipping containers, and automated storage systems.

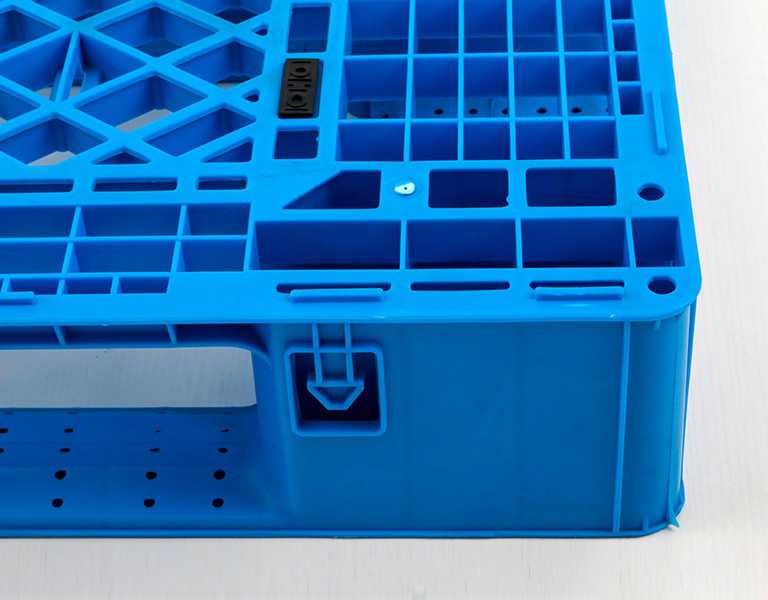

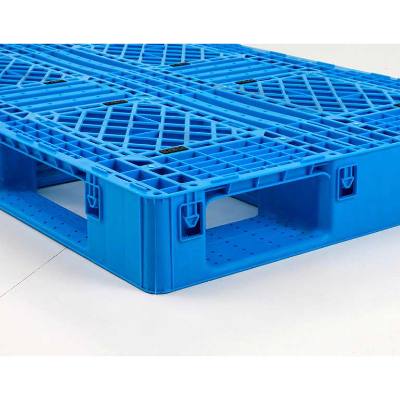

Full Perimeter (6-Runner / Picture-Frame) Base:

Features a bottom skid arrangement that spreads load weight evenly across underlying cargo. Enables safe, stable multi-tier double-stacking of corrugated boxes, bagged raw materials, or containers without crushing bottom layers.

Single-Piece High-Pressure Injection Molding:

Molded in a single shot to form a seamless, unitized structure with zero mechanical fasteners or welds. Provides superior resistance against fork tine impacts and severe torsional stress.

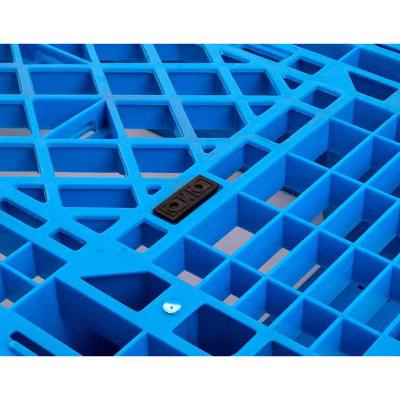

Vented Open Grid Deck Architecture:

Promotes rapid heat dissipation, continuous air ventilation, and instant liquid drainage during washing or thermal processing, while keeping deadweight optimized at just 10.0 kg.

Hygienic & ISPM-15 Export Compliant:

100% waterproof, chemical-resistant, and impervious to biological contamination. Fully exempt from ISPM-15 heat treatment and fumigation mandates for international shipping.
